Product Description

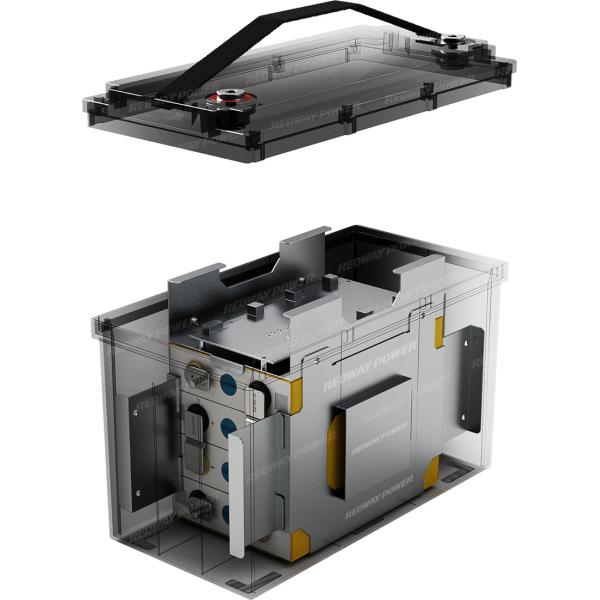

Rechargeable Lithium-ion Lifepo4 12V 150Ah Lithium Battery Deep
Cycle Solar Power Battery
Features
◆ Using the technology of lithium iron phosphate cell, superior
safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge,
overurrent and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead
acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in
parallel.
| Cell Type: | LiFePO4 (LFP) |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 150Ah |
| Norminal Energy: | 1920Wh |
| Dimension (L*W*H): | 395*110*286mm |
| Series / Parallel Number: | 4S1P |
| Maximum Charge Current: | 50A |
| Maximum Discharge Current: | 100A |
Charge Voltage /
Charge Cut-off Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Terminal | M8 |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C
Discharge: -20~60°C |
| Max. Parallel Connection | 4 |
| Protection Level | IP66 |
Optional Functions:
With Bluetooth / Communication / Heating /
Active Balance / Switch / LED Screen | With Bluetooth / Communication / Heating / Active Balance / Switch
/ LED Screen |
| Warranty: | 3 Years |
Application
Power Tools, Home Appliances, BOATS, Golf Carts, SUBMARINES,
Electric Bicycles/Scooters, Electric Folklifts, electric vehicles,
Electric Wheelchairs, Electric Power Systems, Solar Energy Storage
Systems, Uninterruptible Power Supplies
CUSTOM BATTERY SOLUTIONS
Redway Battery specializes in providing a diverse selection of
battery sizes and configurations to cater to a wide range of
applications. Whether you need standard battery options or have
unique power requirements, our team of experienced engineers is
here to assist you throughout the entire process of designing,
developing, testing, and manufacturing custom battery solutions
tailored to your specific needs. Feel free to reach out to us today
to learn more about our comprehensive range of battery solutions
and how we can create a customized solution for you.
All Redway Products Come with:
REDWAY PROMISE
4000 TIMES CYCLES ISO9001,ISO14001, OHSAS18001, EXW, FOB, DAP,DDP
3 YEARS WARRANTY CE, CB, UL, KC, FCC, BIS, IEC62133. T/T, L/C
OPTIONAL
