Product Description

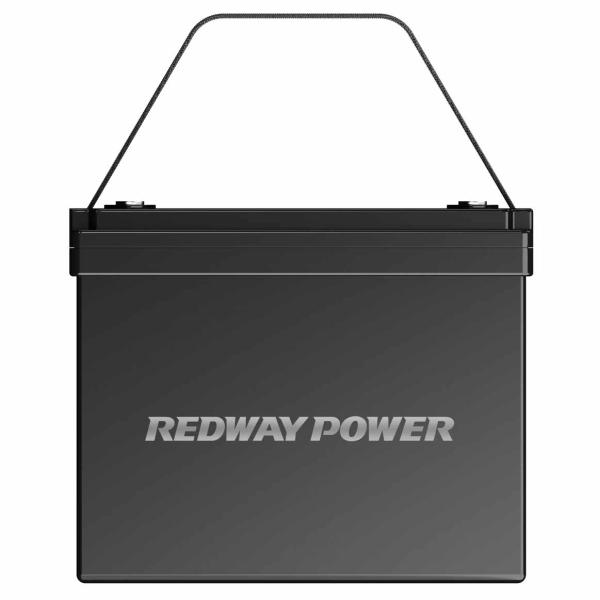

Small sized 24V 50Ah lithium battery for residential energy storage
Features
Uses advanced lithium iron phosphate (LiFePO4) chemistry for
superior performance compared to lead-acid batteries.
High energy density - stores more power per volume and weight.
Extended lifespan - lasts 3-5 times longer than lead-acid.
Fast charging capability - can be recharged in just 1-2 hours.
Low self-discharge - retains charge for longer during storage.
Lightweight and compact design is easy to install and deploy.
Suitable for a wide range of applications from RV, marine, solar
storage to electric vehicles.
Offers high current output and efficiency.
Operates safely across a broad temperature range.
Eliminates sulfation, acid corrosion, gassing and similar lead-acid
issues.
A high-tech, modern lithium battery solution for your power needs.
| Cell Type: | LiFePO4 |
| Nominal Voltage: | 25.6V |
| Nominal Capacity: | 50Ah |
| Norminal Energy: | 1280Wh |
| Dimension (L*W*H): | 10.24*6.61*8.27in
260*168*210mm |
| Series / Parallel Number: | 8S1P |
| Maximum Charge Current: | 25A |
| Maximum Discharge Current: | 50A |
Charge Voltage /
Charge Cut-off Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Terminal | M8 |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C
Discharge: -20~60°C |
| Max. Parallel Connection | 4 |
| Protection Level | IP66 |
Optional Functions:
With Bluetooth / Communication / Heating /
Active Balance / Switch / LED Screen | With Bluetooth / Communication / Heating / Active Balance / Switch
/ LED Screen |
| Warranty: | 3 Years |
