Product Description

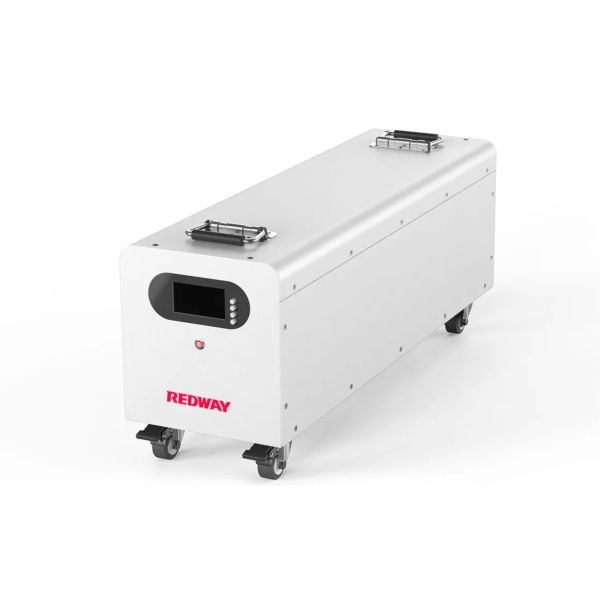

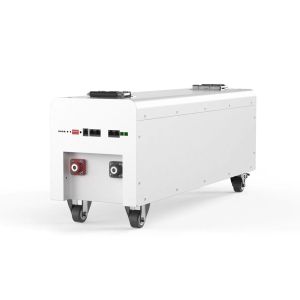

Safe & Reliable 24V 184Ah LiFePO4 Battery for Energy Storage
Features
Portable: The battery is designed with built-in wheels for easy
portability.
High Capacity: It offers a large capacity of 184Ah, allowing for
extended use.
25.6V Voltage: The battery operates at a voltage of 25.6V, suitable
for various applications.
Lithium Technology: It utilizes lithium-ion technology, known for
its efficiency and reliability.
Versatile: The battery can be used for diverse applications,
providing power on the go.
Long-lasting: It has a long service life, providing reliable
performance over time.
Convenient Charging: The battery can be easily recharged for
continued use.
Suitable for Outdoor Use: With its wheels, the battery is ideal for
outdoor activities and mobile power needs.
| Items | Specification |
|---|
| Cell Type | LiFePO4
(Customizable: LiFePO4 / NCM / Prismatic / Cylindrical) |
| Nominal Voltage | 25.6V |
| Battery Capacity | 184Ah |
| Nominal Energy | 4.71kWh (4710.4Wh) |
| Dimension [L*W*H] | 715*220*302 mm (28.15*8.66*11.89 inch)
(Customizable Dimension) |
| Weight | ≈40kg (88.18 lbs) |
| Working Voltage | 20V~29.2V |
| Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Maximum Charge Current | 180A Continuous |
| Maximum Discharge Current | 180A Continuous |
| Fast Charging | Supports Fast Charging |
| Charging Temperature | 0~55°C (32℉~131℉) |
| Discharging Temperature | -20~60°C (-4℉~140℉) |
| Operating Humidity Range | <30% |
| Series/Parallel Number | 8S1P |
| Max. Parallel Connection | 16 |
| Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
| Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
| Self-Discharge Rate | <3% per month (25°C / 77℉) |
| IP Grade | IP21 (Higher grade optional) |
| Battery Case | Steel |
| Battery Base Wheels | 4 |
| Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent /
OverTemperature / ShortCircuit |
| Communication | RS485 / CAN |
| Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED
Touch Screen / APP |
| Accessories | Inverter Power Cable, Parallel Cable, Communication Cable,
Grounding Wire |
| Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE /
Deye / Voltronic, etc. |
| Color | White / Gray / Black |
| Design Life | 20 Years |
| Warranty | 5 Years |
| User Manual | With the Battery Packaging |
| Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS |
Advantages of lithium batteries over lead-acid batteries
Higher charging efficiency: Lithium batteries have higher charging
efficiency, converting electrical energy into stored energy more
effectively compared to lead-acid batteries.
Solid electrolyte: Lithium batteries use solid or gel electrolytes,
whereas lead-acid batteries use liquid electrolytes, making lithium
batteries safer, more stable, and leak-proof.
High energy density: Lithium batteries have higher energy density,
meaning they can store more energy in the same size or weight,
providing longer runtimes.
Longer lifespan: Lithium batteries have a longer lifespan, allowing
for more charge-discharge cycles without significant capacity loss.
Lightweight: Lithium batteries are lighter compared to lead-acid
batteries, making them advantageous in applications that require
reduced weight.
Fast charging: Lithium batteries offer fast charging capabilities,
enabling quicker recharge times compared to lead-acid batteries.
Application
CUSTOM BATTERY SOLUTIONS
Redway Battery specializes in providing a diverse selection of
battery sizes and configurations to cater to a wide range of
applications. Whether you need standard battery options or have
unique power requirements, our team of experienced engineers is
here to assist you throughout the entire process of designing,
developing, testing, and manufacturing custom battery solutions
tailored to your specific needs. Feel free to reach out to us today
to learn more about our comprehensive range of battery solutions
and how we can create a customized solution for you.
All Redway Products Come with:
REDWAY PROMISE
6000 TIMES CYCLES ISO9001,ISO14001, OHSAS18001, EXW, FOB, DAP,DDP
5 YEARS WARRANTY CE, CB, UL, KC, FCC, BIS, IEC62133. T/T, L/C
OPTIONAL
